    Imported KDS Motor 4 Seats Battery Operated Golf Cart Electric Cargo Vehicle

    Ask Lasest Price
    Brand Name : KERID
    Model Number : KRD -G4+1
    Certification : ISO9001, CE
    Price : USD 4700-5300 Per unit
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 150 Units Per Month
    Delivery Time : Within 15 working days after receiving your deposit
    • Product Details
    • Company Profile

    Imported KDS Motor 4 Seats Battery Operated Golf Cart Electric Cargo Vehicle


    Imported KDS Motor 4 Seats Battery Operated Golf Cart Electric Cargo Vehicle With Small Cargo Box


    Features Description


    1. Advanced Drum Brake Technology
    2. Global Special LED Headlight
    3. Curtis Controller
    5. Eletromagnetic Brake Makes Driving More Safty
    6. 100% Waterproof accelerator

    7. Comfortable seats


    Application And Customer Display


    Application areas: Golf Course, Resort,Hotel, Theme Park, Amusement Park, Garden, Residential Community, Inside factory, Shopping mall, Musuem, Campus and so on.


    Customer display



    Specification


    Loading Capacity500KG(including cargo)
    L*W*H3690mm×1210mm×1960mm
    Box Size700mm×1100mm×200mm
    Max. Range80-100 km
    Min. Clearance110mm
    Min. Braking Distance≤3.0M
    Min. Turning Radius≤4.0M
    Max. Grade Ability30 %
    Charging Time6-8H
    Max. Speed25-30 km/h
    Electrical SystemMotor:the US imports KDS 48V 3.0KW high efficiency copper coil winding motor with speed sensor to accurately control the speed. Strong overload capability. High temperature resistance and low noise.
    Battery: 8V/Pcs*6, large capacity, deep recycle, lead acid batteries.
    Charger: computer intelligent automatic high-frequency, high-efficiency pulse type charger, input: 220V AC, 50HZ, output:48V DC 25A. Temperature compensation with battery temperature sensor for extended battery life.
    Controller: US imported Curtis controller with personalized programming, CMOS stepless shifting system. The speed of the car can be adjusted according to customer requirements. The controller has its own electromagnetic brake and downhill speed limit function.
    Accelerator: Hall-type contactless continuously variable transmission system
    ChassisProfessional frame type high strength steel plate bending welded chassis. Sandblasting, zinc spraying, baking varnish triple rust-proof treatment.
    Body CoverHigh-strength impact-resistant composite body (PT+PBT alloy injection front cover) with super impact resistance
    Rear AxleHigh-efficiency gear transmission, differential speed ratio 12.31:1, maintenance-free.
    Brake SystemMechanical drum brake
    Front suspension systemMulti-piece leaf spring and hydraulic shock absorber system.
    Rear suspension systemMulti-piece leaf spring and hydraulic shock absorber system.
    Steering SystemSingle-stage rack and pinion steering system
    Seating System4 seats PU car seat, artificial leather sofa seat, comfortable ride.
    TireRadial tire 18×8.5-8 vacuum tire
    DashboardUS Curtis electricity meter, ignition switch, direction selector switch, water cup position, storage bin.
    Cargo boxVacuum rotomolding container(700mm×1100mm×200mm)
    ColorMake a customization as per your requirements.

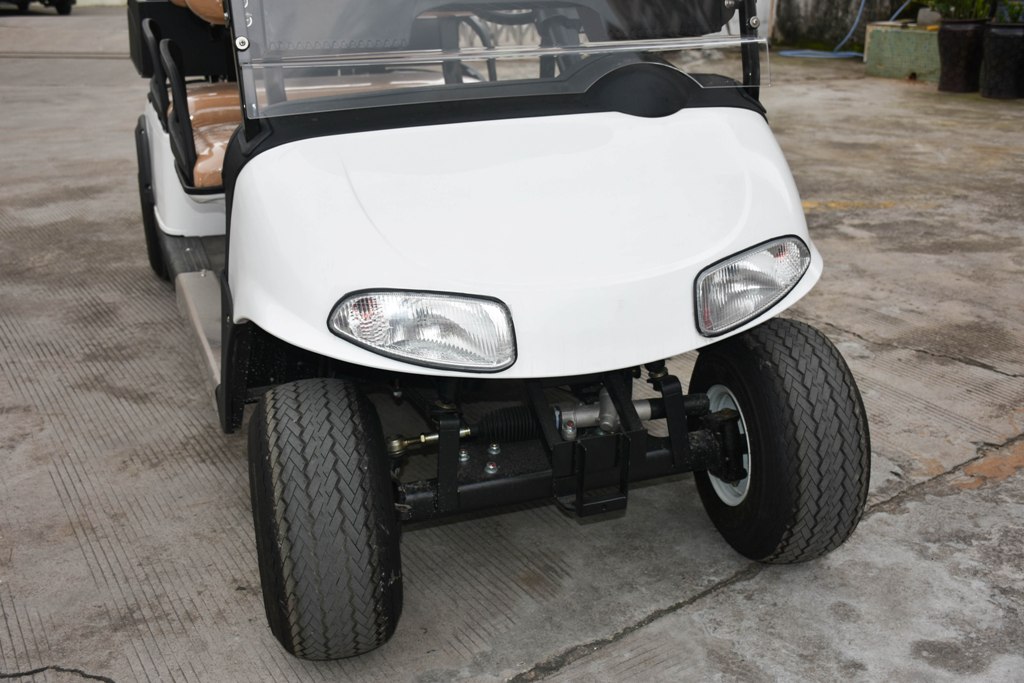

    Detailed Images





    Our Factory Show
