Curtis Controller 48V Electric Sightseeing Car / Electric Passage Car 8 Seaters With Onboard Charger

Guangzhou Ruike Electric Vehicle Co,Ltd
Contact Now
    Buy cheap Curtis Controller 48V Electric Sightseeing Car / Electric Passage Car 8 Seaters With Onboard Charger from wholesalers

    Buy cheap Curtis Controller 48V Electric Sightseeing Car / Electric Passage Car 8 Seaters With Onboard Charger from wholesalers
    • Buy cheap Curtis Controller 48V Electric Sightseeing Car / Electric Passage Car 8 Seaters With Onboard Charger from wholesalers
    • Buy cheap Curtis Controller 48V Electric Sightseeing Car / Electric Passage Car 8 Seaters With Onboard Charger from wholesalers
    • Buy cheap Curtis Controller 48V Electric Sightseeing Car / Electric Passage Car 8 Seaters With Onboard Charger from wholesalers
    • Buy cheap Curtis Controller 48V Electric Sightseeing Car / Electric Passage Car 8 Seaters With Onboard Charger from wholesalers

    Curtis Controller 48V Electric Sightseeing Car / Electric Passage Car 8 Seaters With Onboard Charger

    Ask Lasest Price
    Brand Name : KERID
    Model Number : KRD-D8
    Certification : ISO9001, CE
    Price : Negotiated
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 150 Units Per Month
    Delivery Time : Within 15 working days after receiving your deposit
    • Product Details
    • Company Profile

    Curtis Controller 48V Electric Sightseeing Car / Electric Passage Car 8 Seaters With Onboard Charger

    Curtis Controller 48V Electric Passage Car 8 Seaters Electric Sightseeing Car With Onboard Charger


    Product Features


    1.Attractive design and powerful in appearance, with strong carrying capacity and lower noise;

    2.Standard feature: front and rear lights, rear view mirrors, electric horn, rustproof body structure;

    3.Small turning radius, smart steering system;whole style steel rear axle;
    4.Can bes easy modified to transportation vehicles;
    5.CE certificate for whole carts;
    6.Four wheels hydraulic braking system and independent parking brake.


    Specification


    Performance

    Passenger capacity6-8 seats
    Max.Speed30km/h
    Range(loaded)80-100km
    Climbing Ability(loaded)0.15-0.30
    Braking Distance≤5m
    Min.Turning Radius5m
    Min.Clearance190mm
    Recharge time8~10h

    Dimensions

    L×W×H3600×1450×2000mm
    F/R Tread1200/1200mm
    Axle Distance2600mm
    Curb Weight750kg
    Max. loading700kg


    Standard Configurations

    Motor48V/5KW AC motor, powerful, superior traction performance, low noise, overload capacity, long service life.
    Controller48V/5KW Curtis controller
    Body & RoofHigh impact fiber glass, The body is super strength, corrosion resistance, long life of automotive glass fiber reinforced plastic material, beautiful and durable, light weight and other unique advantages
    BatteriesFree-maintenance Batteries, 6V*12 pcs Large capacity deep cycle power battery, good safety, long life, high service life
    WindshieldSee-through Laminated glass, The car is equipped with special glass car wiper
    SeatsSponge + artificial leather, high rebound PU, with handrails, riding comfort
    Rear view mirror2pcs , manual exterior rearview mirror, comprehensive understanding of road conditions
    Tire145/70 R12 Radial tire (Auto tire),Alloy Wheel,Vacuum Tire
    ChassisWelded tubular steel with rust-proof powder coated paint
    SteeringSingle reduction rack and pinion, Adopt automobile steering machine to adjust the clearance automatically. Matching perfect trapezoidal mechanism, rotation without dead angle, direction more light
    Front SuspensionThe MacPherson Strut suspension system, coil spring+shock absorber
    Rear suspensionLeaf spring+shock absorber non-independent suspension
    Lighting system2 headlights, 2 front turn signals, 2 rear turn signals and 2 rear brake lights
    Sound systemRadio and MP3 player; Speaker
    Brake system4-wheel hydraulic drum brake system + handbrake
    ChargerAutomatic high efficiency pulse, Output:72V/25A, Input AC 220V/50HZ
    DashboardVoltameter, ammeter, turn signal indicator, headlight indicator, emergency switch, Headlight switch, turn signal switch, wiper switch, horn button

    Optional Colors


    Curtis Controller 48V Electric Sightseeing Car / Electric Passage Car 8 Seaters With Onboard Charger

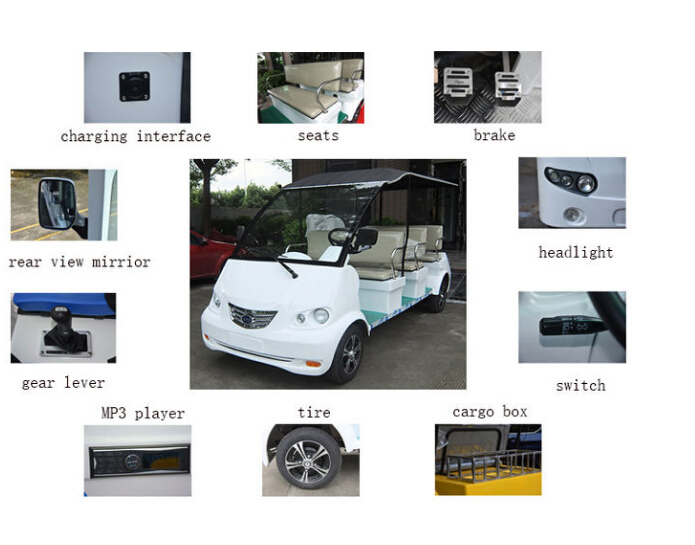

    Detailed Images

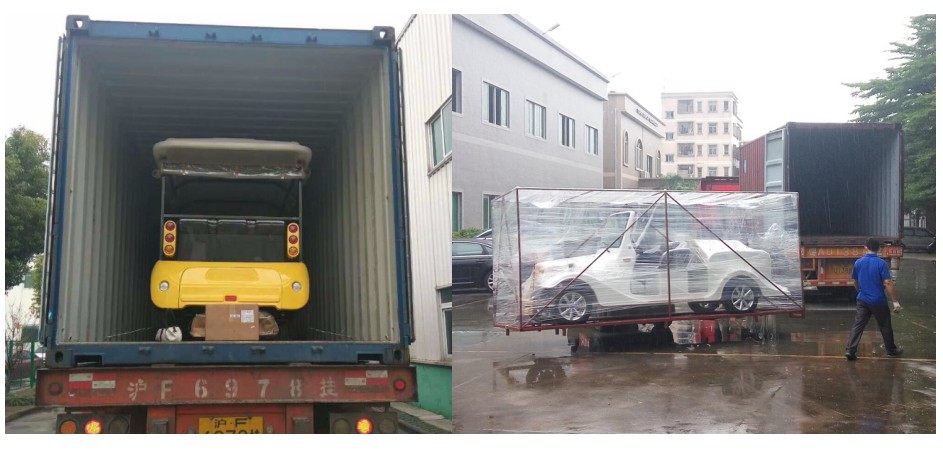

    Packing&Shipping


    Curtis Controller 48V Electric Sightseeing Car / Electric Passage Car 8 Seaters With Onboard Charger


    Factory


    Curtis Controller 48V Electric Sightseeing Car / Electric Passage Car 8 Seaters With Onboard Charger


    Service


    1. OEM Manufacturing welcome: Product, Package...
    2. Sample order
    3. We will reply you for your inquiry in 24 hours.
    4. After sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
