Brand Name : | Kerid |
Model Number : | X1-400 |
Certification : | CE |
Price : | Negotiated |
Supply Ability : | 200 UNITS PER MONTH |
Delivery Time : | within 15 days after payment |

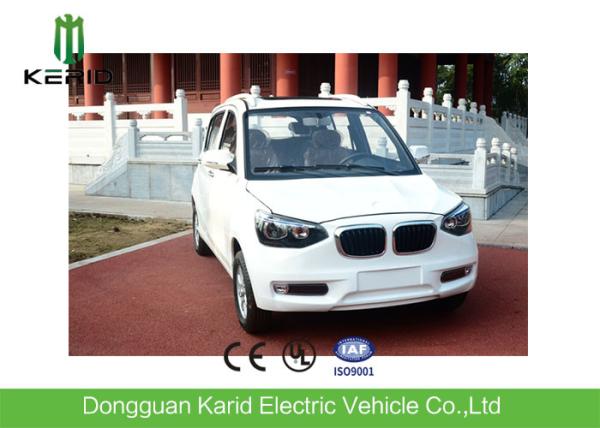

Long Range Light Weight Electric City Car LSV / NEV Model X1-400 CE
Approval
Product Description
Main Parameters
Model | X1-400 | |
drive model | F/R | |
rated passenger | 4 passengers | |
overall profile | length(mm) | 3300 |
width(mm) | 1550 | |
height(mm) | 1560 | |
wheelbase(mm) | 2185 | |
tread(mm) | 1360/1350 | |
motor rated power(kw) | 3.5 | |
charging time(h) | 8-10h | |
voltage | 72V | |
input voltage(V) | 220 | |
tire | 155/70 R12 | |
F/R tire pressure | 2.5Kpa | |
payload(kgs) | 450 | |
curb mass(kgs) | 850 | |
main performance | max speed(km/h) | 45 |
max gradeability(%) | ≤25 | |
brake distance(m) | ≤5 | |
min swerve radius(m) | ≤5 | |
continue range(km) | ≤150 |
Standard Configuration
main config | battery qty | 6 |
rated voltage(V) | 72 | |
rated capacity(Ah) | 100 | |
charging time(h) | 10 | |
range extender | N/A | |
front door glass lifter | ||
rear door glass lifter | N/A | |
power assisted steering | ||
remote key | ||
rear view camera | ||
parking sensor | N/A | |
heater | ||
air conditioner | ||
sun roof |
Suspention: Macpherrson front suspension,Independent suspension of
integral axle rear suspension
Brake System: F/R brake style,front disc rear drum with brake
booster
Power Train: 1. Motor: permanent magnet synchronous motor
2. Battery Model: lead acid maintenance free
Product Features
1. High - end brand motor, power output stable and sufficient, low noise, easy to control.
2. It has the function of brake support and anti-slip slope, which makes you more convenient to drive.
3.Rich in technology.
1> The remote control key is unlocked, the key to lock the car is fixed.
2> The Windows are controlled by the power button.
3> The DVD multimedia system is equipped with reverse image, radio and audio and video entertainment functions.
4> Optional navigation, air conditioning and steering.
Detailed Images
Service commitment
Customer service post: Karid has always been adhering to the "quality first, customer
first" principle of service, for customers to provide the most
convenient service, the company in the northeast and North China,
central China, East China, northwest, southwest, Southern China
district and other national more than 30 provincial capital city to
set up customer service service.
After sales response: insist on quarterly regular return visit and guidance maintenance,
to extend the service life of the vehicle, after receiving the
customer after-sales call, the company will arrange the nearest
after-sales service staff from your unit to deal with after-sale
problems
Quality assurance: the sale of products for the factory packaging intact, in
accordance with the National Quality Certification Center
certification standards, provide technical data, instructions and
certificate.
Customer service warranty: one year free warranty, except the spare parts, to provide
door-to-door service, the user need not repair, and provide
technical services for life support and maintenance.
Service time: 7*24 hours, all-weather after-sales service.
![]() |
