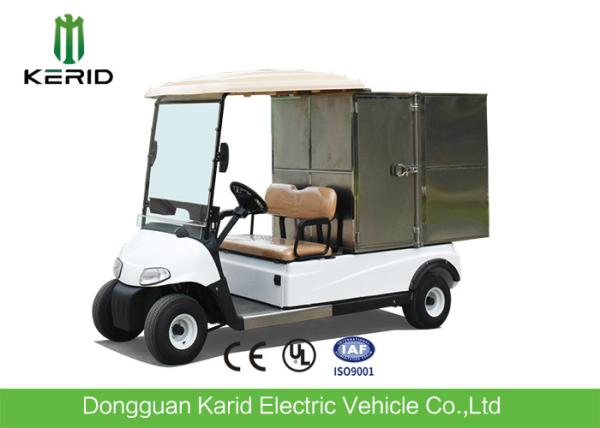

2 Seats Small Cargo Vehicle Electric Golf Cart With Stainless Steel
Container For Hotel
Description
Golf using special plastic materials, body, high hardness paint
layer, shiny, full, toughness, impact resistance ability. The
international standard of high strength steel chassis is formed
according to the principle of automobile chassis design,
engineering plastic frame, the lighter body and enhances the
firmness of the vehicle.
We're a modern and professional manufacturer of 4 wheel low speed
electric vehicles, specializing in the development, design,
production, sales and after-sales services of electric tourist
vehicles, electric vintage vehicles, electric patrol vehicles,
electric golf carts, electric mobility vehicles, electric trucks
and other electric drive vehicles. Widely used for tourist
attractions, real estate, golf course, high-end hotels, resorts,
luxury villas, commercial pedestrian streets, communities,
factories, schools, airports, hospitals, government procurement,
etc.
Specification
| Gross Weight | 540KG | |
| Loading Capacity | 650KG(including cargo) |
| L*W*H | 3400mm×1185mm×1870mm |
| Container Size | 1600mm×1100mm×900mm |
| Max. Range | 70-100 km |
| Min. Clearance | 140mm |
| Min. Braking Distance | ≤5.0M |
| Min. Turning Radius | ≤5.0M |
| Max. Grade Ability | 25%-35 % |
| Charging Time | 6-8H |
| Max. Speed | 22－25km/h |
| Electrical System | Motor:the USA imports KDS 48V/4KW DC-excited torque motor. High
temperature resistance, low noise |
| Battery: 6V/Pcs*8, large capacity, deep recycle, lead acid maintenance-free
batteries. |
| Charger: Fully automatic intelligent automatic power off charger, input
voltage is AC 220V 50 ~ 60HZ, output DC 48V 25A. With temperature
sensor, temperature compensation. |
| Controller: Curtis imported controller CMOS stepless speed change system with
personalized programming speed limit. 48V 325A output |
| Accelerator: Curtis contactless Hall type. |
| Chassis | Professional frame type high strength steel plate bending welded
chassis. Sandblasting, zinc spraying, baking varnish triple
rust-proof treatment. |
| Body Cover | High-strength PP material is integrally injection molded, resistant
to aging and low temperature. |
| Rear Axle | High-efficiency geared rear axle, maintenance-free for life. With
main reducer and differential. Transmission ratio 14.49:1 |
| Brake System | Mechanical drum brakes with mechanical parking (foot parking). |
| Front suspension system | Multi-piece leaf spring and hydraulic shock absorber system. |
| Rear suspension system | Multi-piece leaf spring and hydraulic shock absorber system. |
| Gearbox | Automatic transmission, forward and reverse 2nd gear |
| Steering System | Rack and pinion steering system with automatic clearance
compensation. |
| Lighting System | Headlights, turn signals, rear combination lights, reversing
buzzers, electric horns. |
| Seating System | 2 seats PU car seat, artificial leather sofa seat, comfortable
ride. |
| Tire | American Carlisle tire 18×8.5-8 vacuum wide tire. |
| Front Windshield | Surface hardened plexiglass with a 98% transparency. |
| Dashboard | US Curtis electricity meter, ignition switch, direction selector
switch, water cup position, storage bin. |
| Color | Make a customization as per your requirements. |

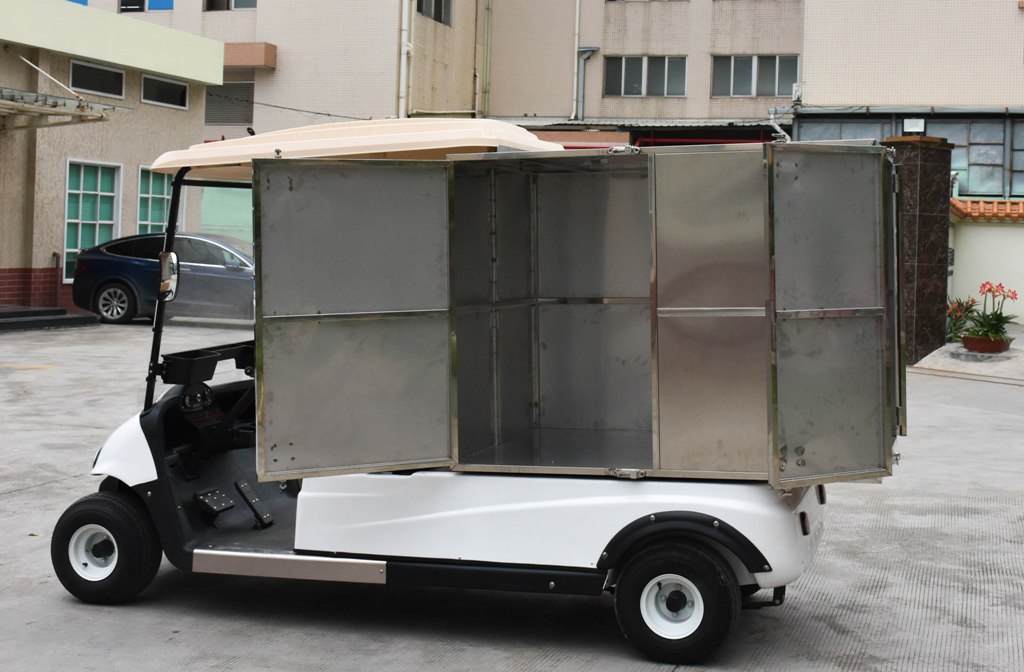

Detailed Images
Packing&Shipping
1. Our products packing ways as per the products feature and order
quantity.
2. Nude packing fixed with steel wire for FCL, Steel crate packing/
wooden box packing for LCL.
